  4. M8 Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67, UL
Part no.: 99 3383 00 04

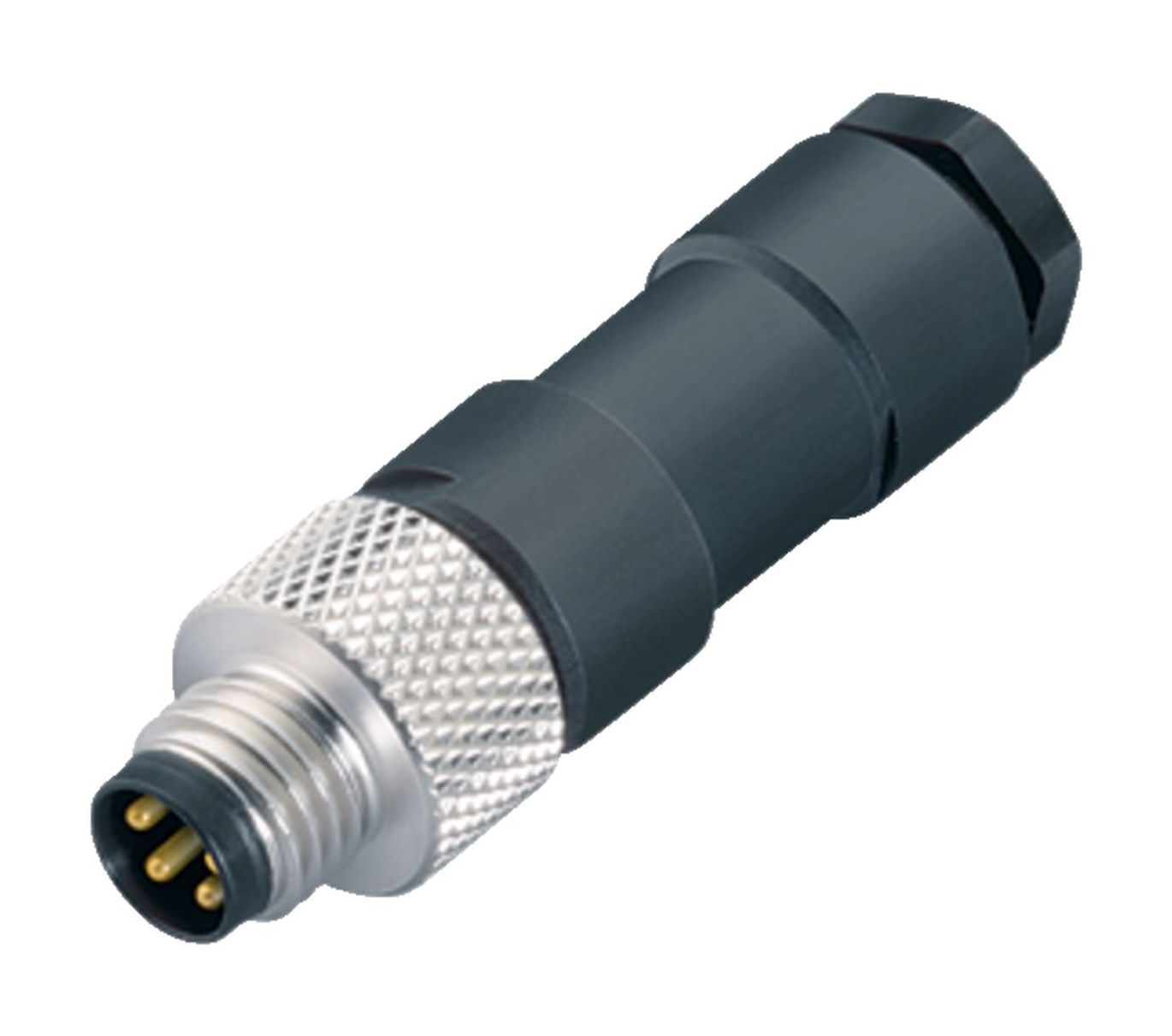

M8 Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67, UL

M8, series 768, Automation Technology - Sensors and Actuators
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 99 3383 00 04
Connector design Male cable connector
Version Connector pin straight
Connector locking system screw
Termination solder
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Cable outlet 3.5-5.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 10.36
Customs tariff number 85369010
Rated voltage 30 V
Rated impulse voltage 1500 V
Rated current (40 °C) 4.0 A
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 6b6706d6-0e13-4d42-bb66-014fed33bfd0
eCl@ss 11.1 27-44-01-02
ETIM 7.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  2. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  3. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
