  4. Female cable connector, Contacts: 2, 6.0-8.0 mm, unshielded, solder, IP40
Part no.: 99 0602 02 02

Female cable connector, Contacts: 2, 6.0-8.0 mm, unshielded, solder, IP40

Bayonet, series 678
Compare product
Downloads
This female cable connector with bayonet locking system and a pin count of 2 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this unshielded bayonet female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 7,0 A it is perfectly tuned for its field of application.

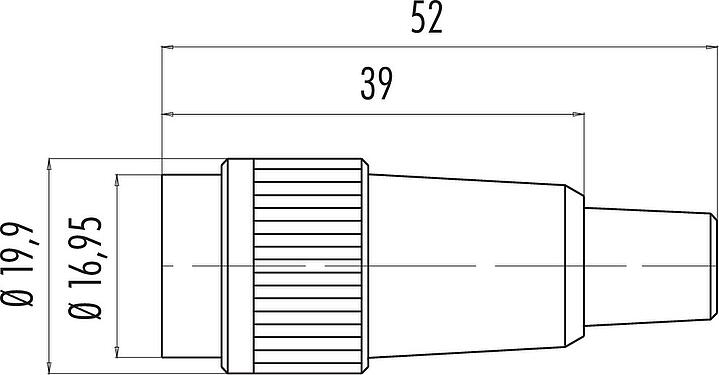

General features
Moreless
Part no. 99 0602 02 02
Connector design Female cable connector
Version Connector socket straight
Connector locking system Bayonet
Termination solder
Degree of protection IP40
Cross-sectional area max. 0.75 mm² / AWG 18
Cable outlet 6.0-8.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 8.67
Customs tariff number 85369010
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current (40 °C) 7.0 A
Insulation resistance ≥ 10¹⁰ Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Housing material PA
Contact body material PBT (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Ag (silver)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
