Part no.: 72 9140 000 04

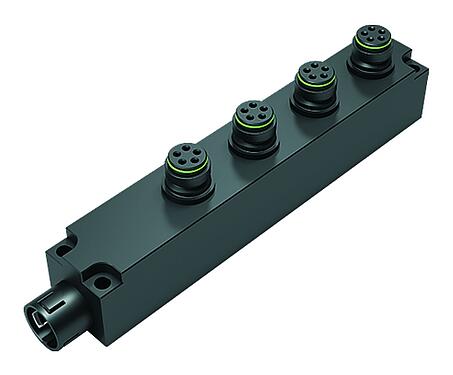

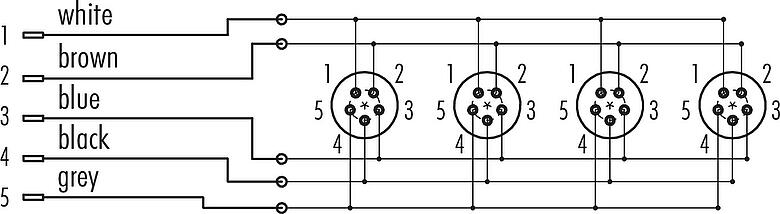

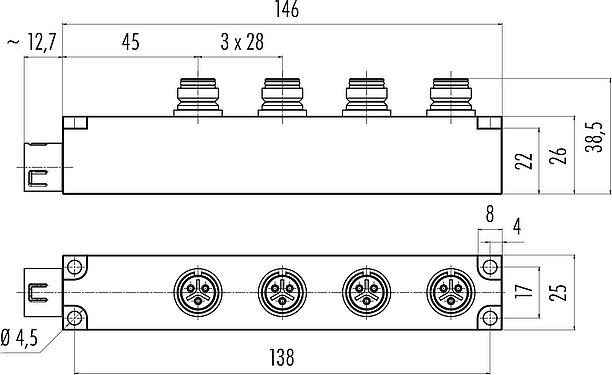

Snap-In 4-way distributor, Contacts: 5, unshielded, pluggable, IP67
Snap-In IP67, series 720, Miniature Connectors
This 4-way disributor with snap-in locking system and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -40 °C/85 °C is this unshielded Snap-In IP67 4-way disributor designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 5,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 72 9140 000 04 |
| Connector design | 4-way distributor |
| Version | Distribution Blocks |
| Connector locking system | snap-in |
| Termination | pluggable |
| Degree of protection | IP67 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 150.31 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 125 V |
| Rated impulse voltage | 1500 V |
| Rated current | 5.0 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 2 |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA66 (UL94 HB) |
| Contact body material | PA black |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | ec779f57-d00e-4def-bbbc-3e14b6ba37fc |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018 | 2011/65/EU;EN 50581:2012 | 2014/35/EU;EN 60529:1991) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
