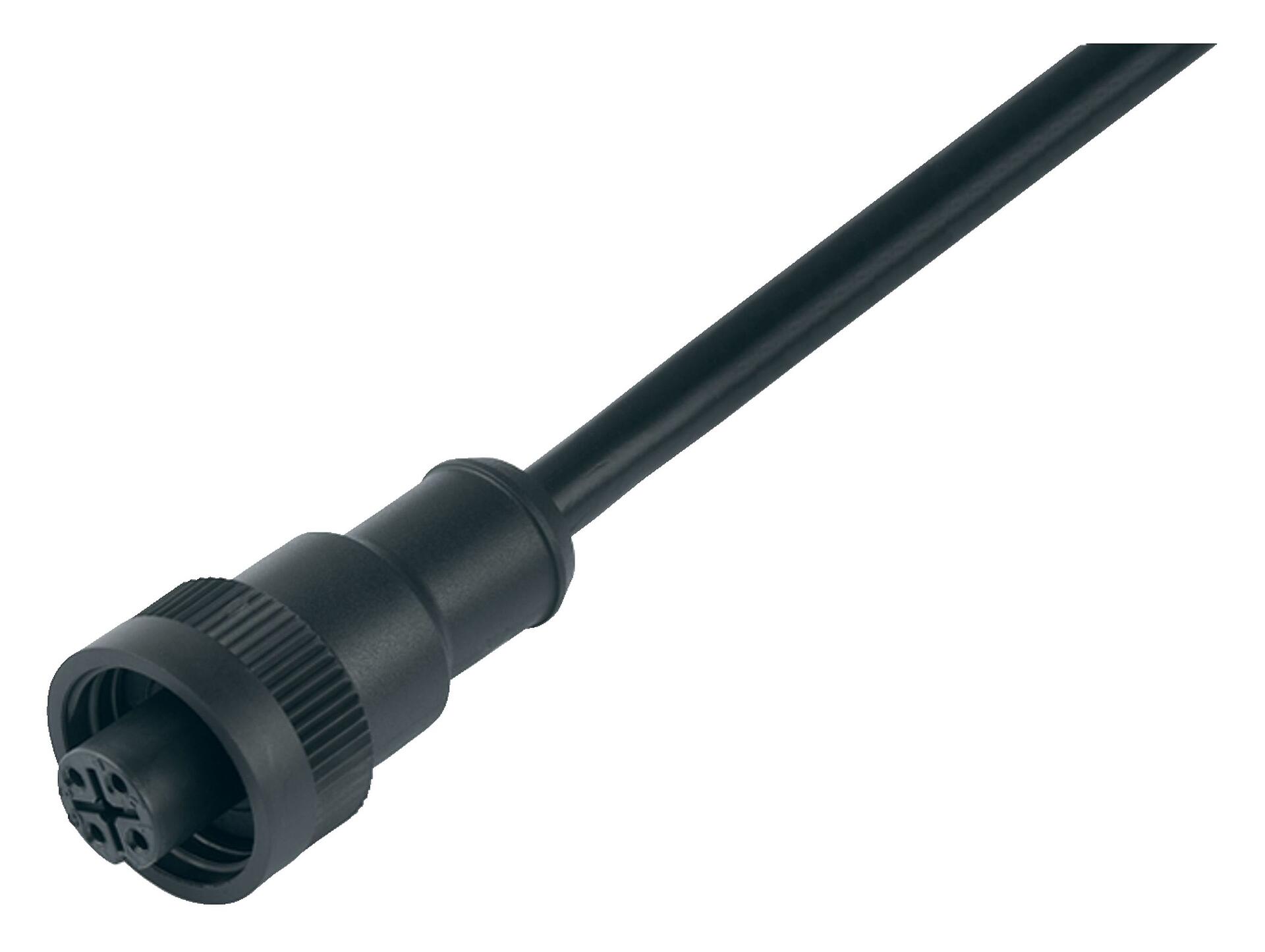

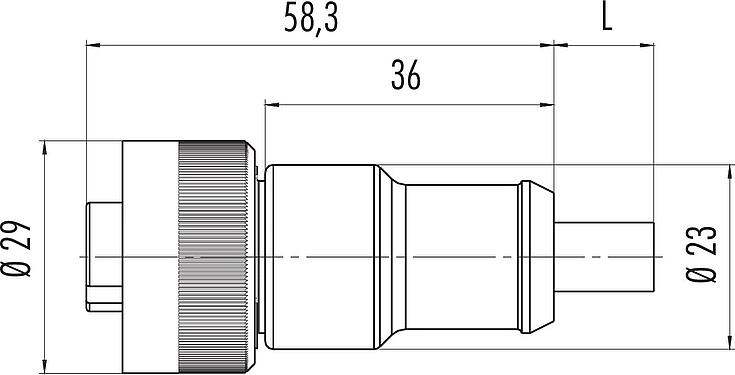

  4. RD24 Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PVC, black, 4 x 1.50 mm², 2 m
Part no.: 79 0232 20 04

RD24 Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP67, PVC, black, 4 x 1.50 mm², 2 m

RD24, series 692, Power Connectors
Available numbers of contacts
Compare product
Downloads
This female cable connector with screw locking and a pin count of 3+PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/80 °C is this unshielded RD24 female cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 400 V and the rated current of 16,0 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 79 0232 20 04
Connector design Female cable connector
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector socket straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 1.50 mm² / AWG 16
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 500 Mating cycles
Weight (g) 266.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 400 V
Rated impulse voltage 6000 V
Rated current 16.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Contact body material PA12
Contact material CuZn (brass)
Contact plating Ag (silver)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 5884e040-39a2-4c22-a373-c0bc7d370422
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 8.6 mm
Cross section 4 x 1.50 mm²
Sheath material PVC
Single-lead insulation PVC
Single-lead structure 28 x 0.25 mm
Cable color black
Mechanical properties
Bending radius, fixed cable ≥ 7.5 x Ø
Bending radius, moving cable ≥ 15 x Ø
Thermal properties
Temperature range cable in move from/to -5 °C / 80 °C
Temperature range cable fixed from/to -20 °C / 80 °C
Other features
Halogen free no
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  4. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
