  4. Contacts: 5 wires, unshielded, Standard, PVC, grey (RAL 7000), 5 x 0.34 mm², 100 m
Part no.: 08 3085 000 000

Contacts: 5 wires, unshielded, Standard, PVC, grey (RAL 7000), 5 x 0.34 mm², 100 m

PVC cable, series 769, Cable
Available numbers of contacts
(Other lengths are available on request).
Compare product
Downloads
General features
Moreless
Part no. 08 3085 000 000
Alternative part no.: 52 0554 000
Cable length 100 m (Other lengths are available on request).
Version Cable
Weight (g) 4157.00
Customs tariff number 85444995
Country of Origin DE
EMC compliance unshielded
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-44-01-90
ETIM 9.0 EC002638
Cable data
Moreless

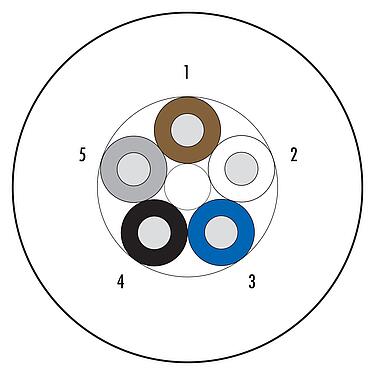

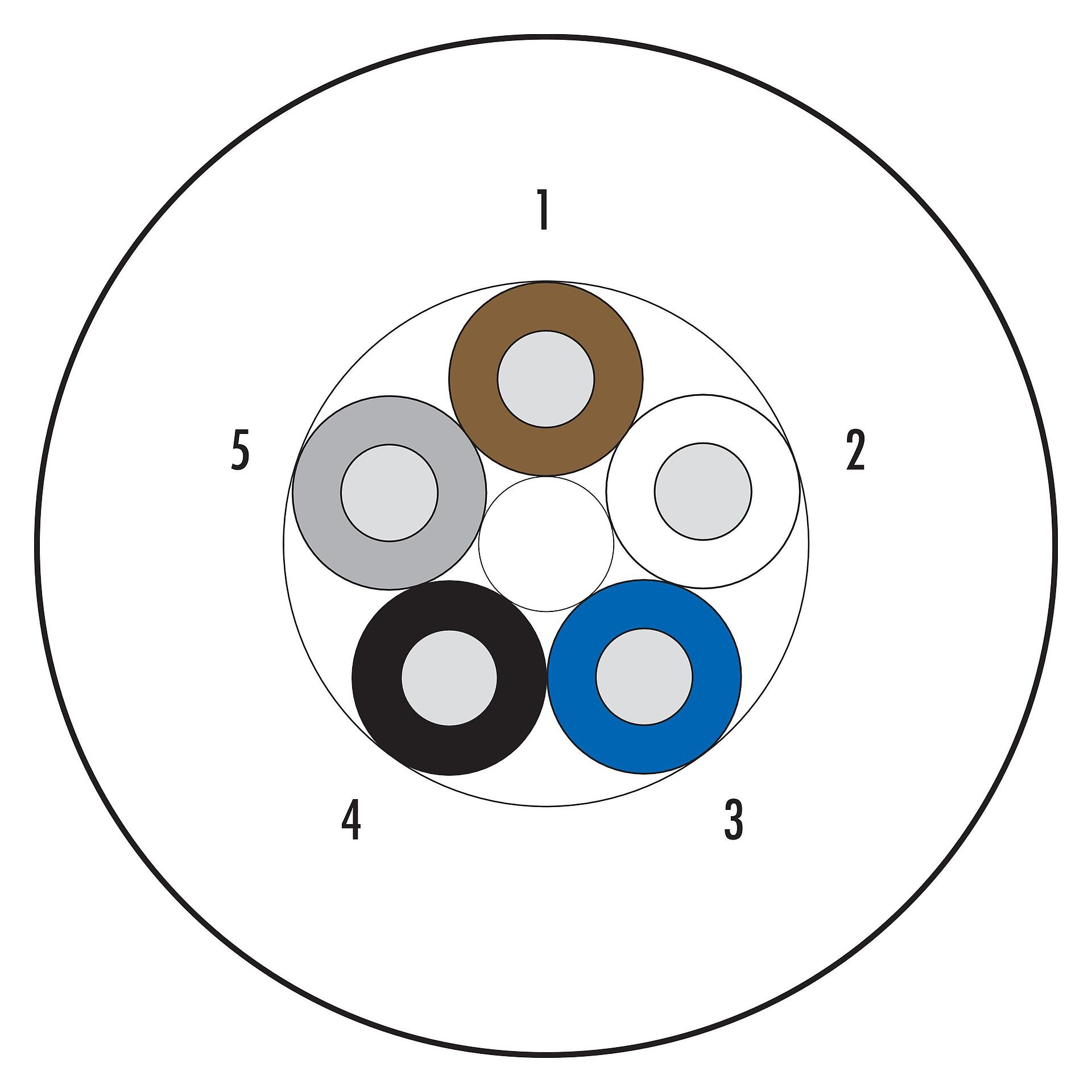

Structure of the cable
Cable type Standard
Cable diameter 5.2 mm
Cross section 5 x 0.34 mm²
Sheath material PVC
Single-lead insulation PVC Y17 (105 °C) according to VDE 0281 part 1 + class 43 according to UL1581 (SR-PVC, Y17-Y18)
Single-lead structure 42 x 0.10 mm
Cable color grey (RAL 7000)
Electrical properties
Cable Insulation resistance > 200 Ω/Km
Operating voltage ≤ 300 V
Cable test voltage ≥ 2500 V effective
Conductor resistance 57 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 2 million
Permitted acceleration max. 5 m/s² + 1 m/s²
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 2 m
Travel speed at 5 m horizontal path -> 200 m/min
Thermal properties
Temperature range cable in move from/to -5 °C / 105 °C
Temperature range cable fixed from/to -40 °C / 200 °C (short term)
Other features
Halogen free no
Unshielded cable
08 3085 000 000
