  4. M12 Lead-through for control cabinet, female connector – RJ45 angled, Contacts: 8, shielded, pluggable, IP67, UL
Part no.: 09 5288 00 08

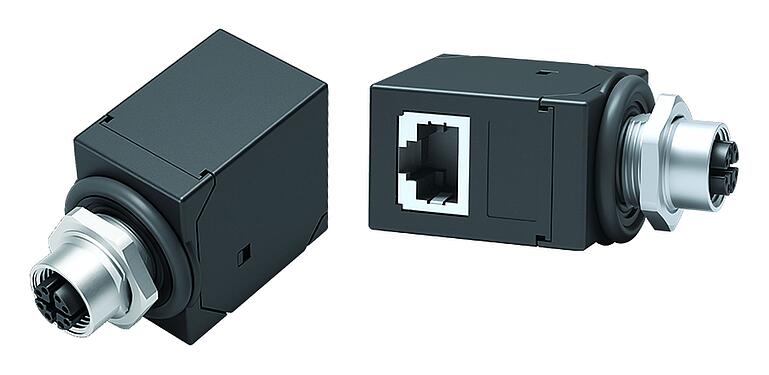

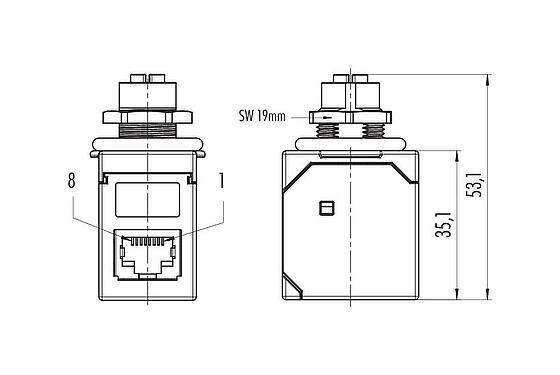

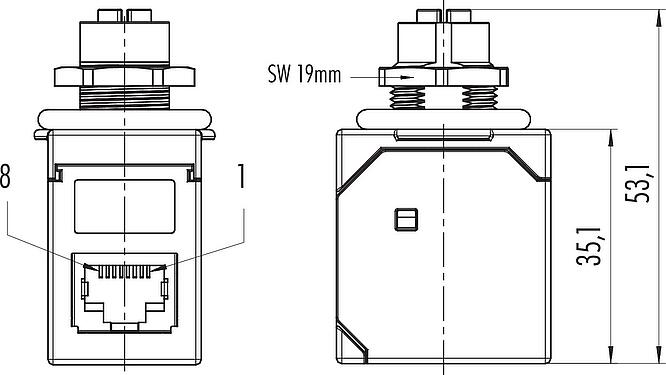

M12 Lead-through for control cabinet, female connector – RJ45 angled, Contacts: 8, shielded, pluggable, IP67, UL

M12-X, series 825, Automation Technology - Data Transmission
Compare product
Downloads
The lead-through for control cabinet, Dose - RJ45 gewinkelt with screw locking and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shielded M12-X lead-through for control cabinet, Dose - RJ45 gewinkelt designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 50 V (AC ) / 60 V (DC) and the rated current of 0,5 A it is perfectly tuned for its field of application.
General features
Moreless
Part no. 09 5288 00 08
Connector design Lead-through for control cabinet, female connector – RJ45 angled
Version Lead-through for control cabinet
Connector locking system screw
Termination pluggable
Degree of protection IP67
IP20
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 30.88
Customs tariff number 85369010
Country of Origin DE
Rated voltage 50 V (AC) / 60 V (DC)
Rated impulse voltage 800 V
Rated current 0.5 A
Insulation resistance > 108 Ω
Pollution degree 3
Transmission rate CAT 6A
Overvoltage category II
Insulating material group III
EMC compliance shielded
Housing material Brass nickel-plated / Zinc die-cast nickel-plated
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 9dcb8098-9cab-4392-b996-e800dce334d0
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
RoHS Directive 2011/65/EU (EN 50581:2012)
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
