Part no.: 77 1434 1427 50004-0200

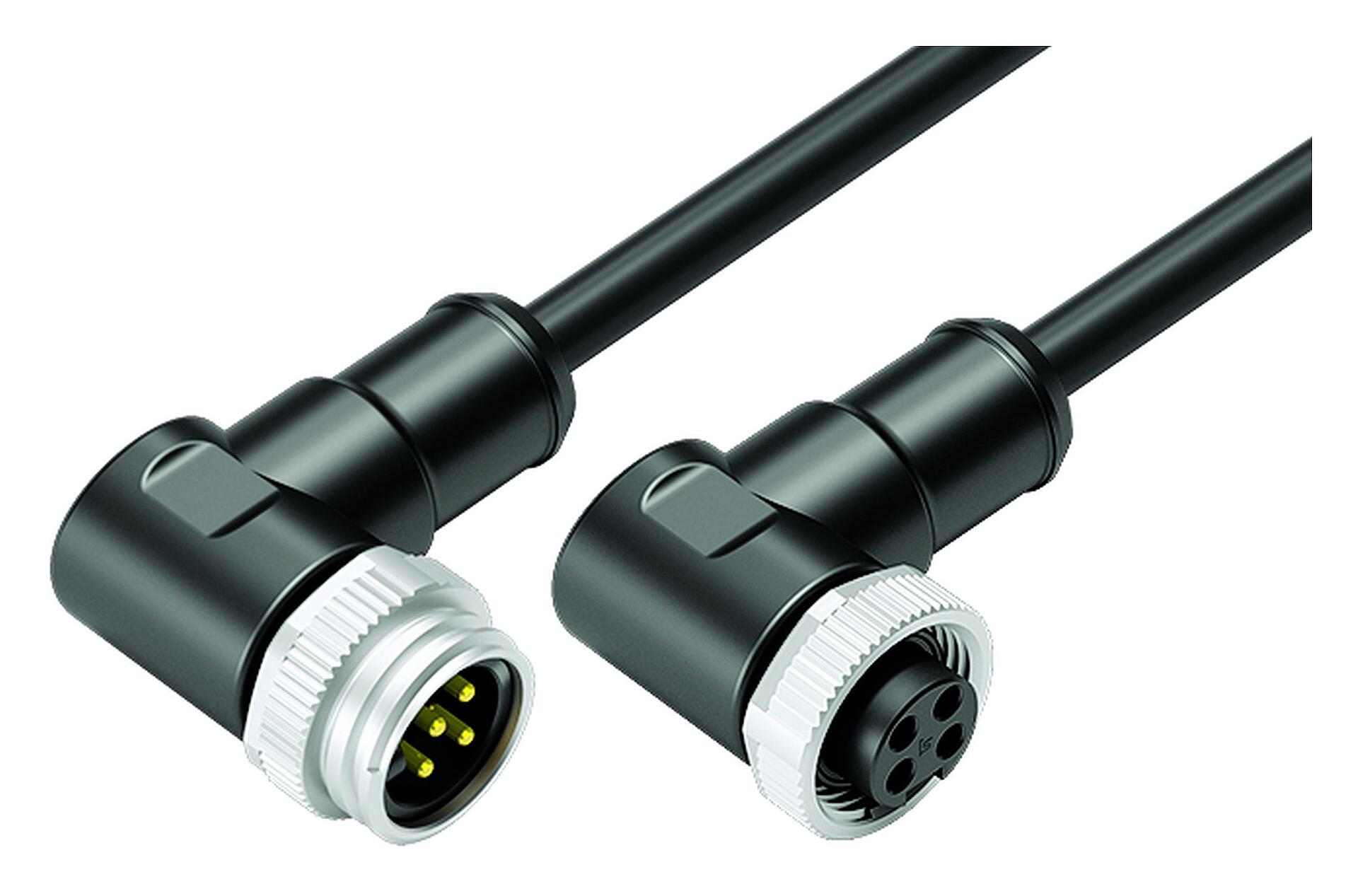

Connecting cable male angled connector - female angled connector, Contacts: 4, unshielded, moulded on the cable, IP68, UL, PUR, black, 4 x 1.50 mm², 2 m
7/8", series 870, Automation Technology - Voltage and Power Supply
3D View(Click to activate)
General features
Moreless| Part no. | 77 1434 1427 50004-0200 |
| Connector design | Connecting cable male angled connector - female angled connector |
| Cable length | 2 m |
| Version | Connecting cable |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection | IP68 |
| Cross-sectional area | 1.50 mm² / AWG 16 |
| Temperature range from/to | -25 °C / 80 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 202 |
| Customs tariff number | 85444290 |
Electrical parameters
Moreless| Rated voltage | 300 V (600 V UL) |
| Rated impulse voltage | 2500 V |
| Rated current (40 °C) | 10.0 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | I |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PUR |
| Contact body material | PUR |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | d11b544f-ac0c-4705-8721-26ebdf6c1f4f |
Authorization/approvals
Moreless| Approvals | UL |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 8.0 mm |
| Cross section | 4 x 1.50 mm² |
| Sheath material | PUR |
| Single-lead insulation | TPM |
| Single-lead structure | 82 x 0.15 mm |
| Cable color | black |
| Electrical properties | |
| Conductor resistance | 13.3 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 7.5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | 5 million |
| Permitted acceleration | 5 m/s² |
| Travel distance, horizontal | 20 m |
| Travel speed | ≤ 300 m/min |
| Thermal properties | |
| Temperature range cable in move from/to | -20 °C / 80 °C |
| Temperature range cable fixed from/to | -50 °C / 80 °C |
| Other features | |
| Halogen free | yes |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
