  4. M12 Male angled connector, Contacts: 4+PE, unshielded, moulded on the cable, IP68, PUR, black, 5 x 2,50 mm², UL in preparation, 5 m
Part no.: 77 0677 0000 50505-0500

M12 Male angled connector, Contacts: 4+PE, unshielded, moulded on the cable, IP68, PUR, black, 5 x 2,50 mm², UL in preparation, 5 m

M12-K, series 824, Automation Technology - Voltage and Power Supply
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads

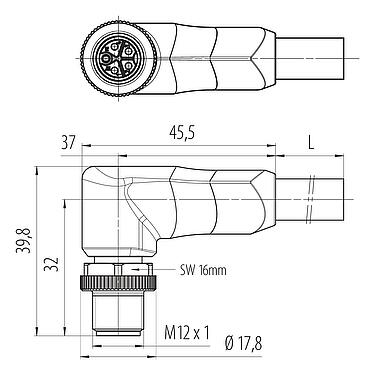

General features
Moreless
Part no. 77 0677 0000 50505-0500
Connector design Male angled connector
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector pin angled
Connector locking system screw
Termination moulded on the cable
Degree of protection IP68
Cross-sectional area 2.50 mm² / AWG 14
Temperature range from/to -40 °C / 90 °C
Mechanical operation > 100 Mating cycles
Additional information UL in preparation
Weight (g) 380.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 630 V
Rated impulse voltage 6000 V
Rated current 16.0 A
Insulation resistance > 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
Cable data
Moreless
Structure of the cable
Cable diameter 9.7 mm
Cross section 5 x 2,50 mm²
Sheath material PUR
Single-lead insulation PP
Single-lead structure 141 x 0,15 mm
Cable color black
Electrical properties
Conductor resistance 8 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable min. 5 x Ø
Bending radius, moving cable min. 10 x Ø
Bending cycles > 4 million
Permitted acceleration 10 m/s²
Travel distance, horizontal 5 m/s² -> 5 m
Travel distance, vertical 5 m/s² -> 5 m
Thermal properties
Temperature range cable in move from/to -30 °C / 90 °C
Temperature range cable fixed from/to -50 °C / 90 °C
Other features
Halogen free yes
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  8. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
  9. In the case of cable connectors with a metal threaded ring, it is imperative to ensure a connection with the PE protective contact of the appliance connector. Connecting cables between appliance connectors that are not connected to the PE contact are not permitted. The user must ensure a continuous connection of the protective earth conductor.
