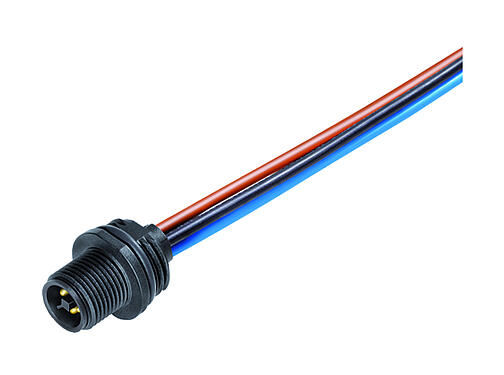

  4. M12 Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, M16x1.5
Part no.: 09 0631 300 04

M12 Male panel mount connector, Contacts: 4, unshielded, single wires, IP68, UL, M16x1.5

M12-T, series 813, Automation Technology - Voltage and Power Supply
Compare product
This male panel mount connector with screw locking and a pin count of 4 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-T coded male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 63 V and the rated current of 12,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN IEC 61076-2-111:2018-10 and VDE 0687-76-2-111:2018-10.
General features
Part no. 09 0631 300 04
Connector design Male panel mount connector
Type standard DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10
Version Connector pin straight
Connector locking system screw
Termination single wires
Degree of protection IP68
Cross-sectional area 1.38 mm² / AWG 16
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 18.24
Customs tariff number 85369010
Country of Origin DE
Rated voltage 63 V
Rated impulse voltage 1500 V
Rated current 12.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number f26b7dac-5b83-4d54-b343-0af45d148bdd
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
