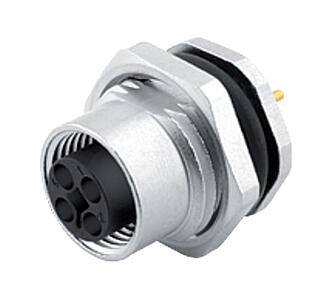

  4. M12 Female panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1.5, front fastened
Part no.: 09 0632 90 04

M12 Female panel mount connector, Contacts: 4, unshielded, THT, IP68, UL, VDE, M16x1.5, front fastened

M12-T, series 813, Automation Technology - Voltage and Power Supply
Compare product
This female panel mount connector with screw locking and a pin count of 4 is according to its protection class IP68 Dustproof and complete protection against contact. Protection against permanent submersion. Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M12-T coded female panel mount connector designed for both severe cold and severe heat and has the UL, VDE approval. Due to the qualified rated voltage of 63 V and the rated current of 12,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN IEC 61076-2-111:2018-10 and VDE 0687-76-2-111:2018-10.
General features
Part no. 09 0632 90 04
Connector design Female panel mount connector
Type standard DIN EN IEC 61076-2-111:2018-10;VDE 0687-76-2-111:2018-10
Version Connector socket straight
Connector locking system screw
Termination THT
Degree of protection IP68
Cross-sectional area 1.50 mm² / AWG 16
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 14.12
Customs tariff number 85369010
Country of Origin DE
Rated voltage 63 V
Rated impulse voltage 1500 V
Rated current 12.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance unshielded
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 7d74b7f9-cd53-4854-8b90-9b2003e014cb
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
