Part no.: 77 9753 3527 64708-0200

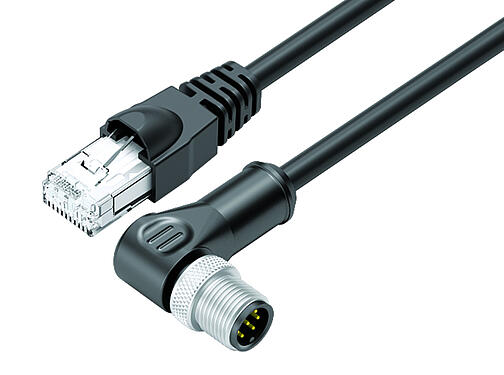

M12-A Connecting cable male angled connector - RJ45 connector, Contacts: 8, shielded, molded/crimp, IP67, Ethernet CAT5e, TPE, black, 4 x 2 x AWG 24, 2 m
M12/RJ45, series 763, Automation Technology - Sensors and Actuators
3D View(Click to activate)
General features
Moreless| Part no. | 77 9753 3527 64708-0200 |
| Connector design | Connecting cable male angled connector - RJ45 connector |
| Type standard | DIN EN 61076-2-101 |
| Cable length | 2 m |
| Version | Connecting cable |
| Connector locking system | screw/lock |
| Termination | molded/crimp |
| Degree of protection | IP67 |
| Cross-sectional area | 4 x 2 x AWG 24 |
| Temperature range from/to | -25 °C / 90 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 360 |
Electrical parameters
Moreless| Rated voltage | 30 V |
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 1.5 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
Material
Moreless| Contact body material | PUR |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | SCIP-number not available |
Classifications
Moreless| ETIM 9.0 | EC002638 |
Cable data
Moreless| Structure of the cable | |
| Cable type | Ethernet CAT5e |
| Cable diameter | 7.6 mm |
| Cross section | 4 x 2 x AWG 24 |
| Sheath material | TPE |
| Single-lead insulation | HDPE |
| Single-lead structure | 7 x 32 mm |
| Cable color | black |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | > 10 million |
| Thermal properties | |
| Temperature range cable in move from/to | -40 °C / 80 °C |
| Temperature range cable fixed from/to | -40 °C / 80 °C |
