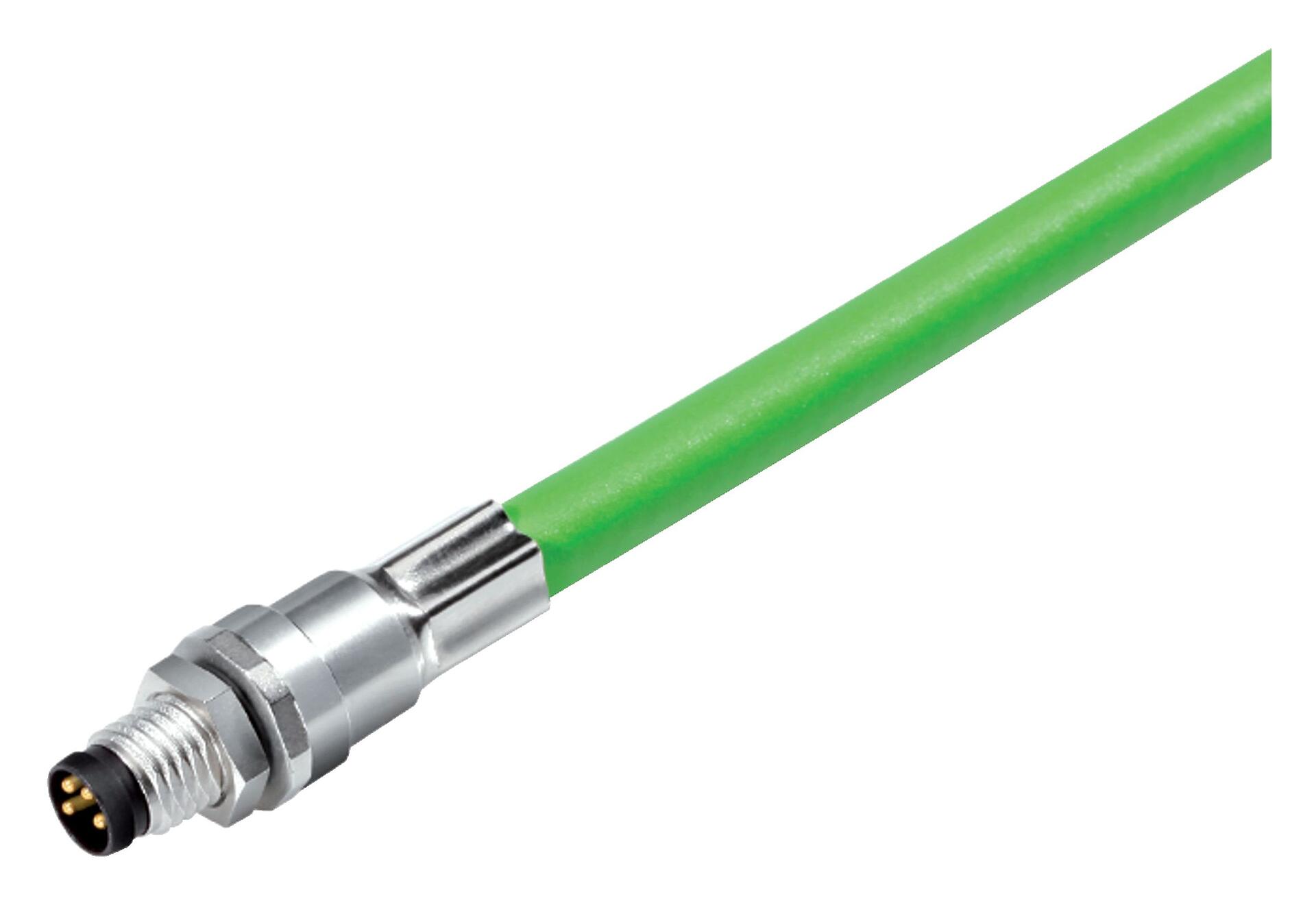

  4. M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m
Part no.: 70 3421 005 04

M8 Male panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m

M8, series 718, Automation Technology - Sensors and Actuators
Compare product
Downloads
This male panel mount connector with screw locking and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/80 °C is this shielded M8 male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 30 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104.
General features
Moreless
Part no. 70 3421 005 04
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Male panel mount connector
Type standard DIN EN 61076-2-104
Cable length 0.5 m (Other lengths are available on request).
Version Connector pin straight
Connector locking system screw
Termination with cable assembled
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -40 °C / 80 °C
Mechanical operation > 100 Mating cycles
Weight (g) 43.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current 4.0 A
Pollution degree 3
Insulating material group II
EMC compliance shielded
Shield connection Shield on the housing
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 6c218029-0e26-4e86-a934-27d0bcf67389
eCl@ss 11.1 27-06-03-11
Cable data
Moreless
Structure of the cable
Cable type Ethernet
Cross section 4 x AWG 22
Sheath material PUR
Single-lead insulation Polyolefin
Single-lead structure 7 x 0.34 mm
Cable color green
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 15 x Ø
Bending cycles > 10 x Ø (2 million)
Permitted acceleration 2 m/s²
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 5 m
Travel speed ≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to -20 °C / 60 °C
Temperature range cable fixed from/to -40 °C / 80 °C
Other features
Halogen free yes
General Disclaim Notice
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
  7. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
