Part no.: 77 3634 3405 50003-0100

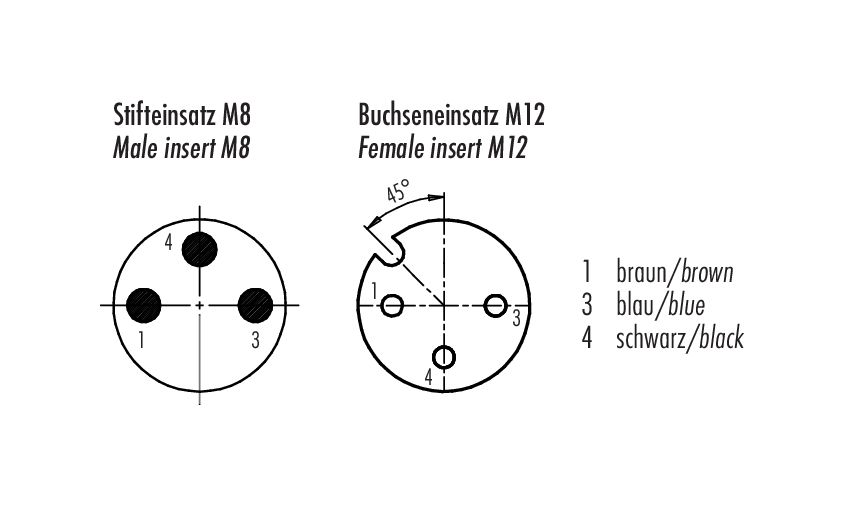

Connecting Cables Connecting cable, Contacts: 3, unshielded, moulded on the cable, IP67, PUR, black, 3 x 0.25 mm², 1 m
M12, series 765, Automation Technology - Sensors and Actuators
3D View(Click to activate)
General features
Moreless| Part no. |
77 3634 3405 50003-0100
Alternative part no.: 79 5104 10 03
|
| Notice |
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More |
| Connector design | Connecting cable |
| Cable length | 1 m |
| Version | Connecting cable |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection | IP67 |
| Cross-sectional area | 0.34 mm² / AWG 24 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 26 |
| Customs tariff number | 85444290 |
Electrical parameters
Moreless| Rated voltage | 30 V |
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 4.0 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PUR |
| Contact body material | PUR |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 7246cd6e-4d02-4e96-85c2-9a8391b11771 |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 7.0 | EC001855 |
Declarations of conformity
Moreless| RoHS Directive | 2011/65/EU (EN 50581:2012) |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 4.5 mm |
| Cross section | 3 x 0.25 mm² |
| Sheath material | PUR |
| Single-lead insulation | PVC |
| Single-lead structure | 32 x 0.10 mm |
| Cable color | black |
| Electrical properties | |
| Conductor resistance | 72 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 10 x Ø |
| Thermal properties | |
| Temperature range cable in move from/to | -20 °C / 80 °C |
| Temperature range cable fixed from/to | -40 °C / 80 °C |
| Other features | |
| Halogen free | no |
General Disclaim Notice
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
