Part no.: 09 9618 100 05
M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting
M9 IP67, series 712, Subminiature Connectors

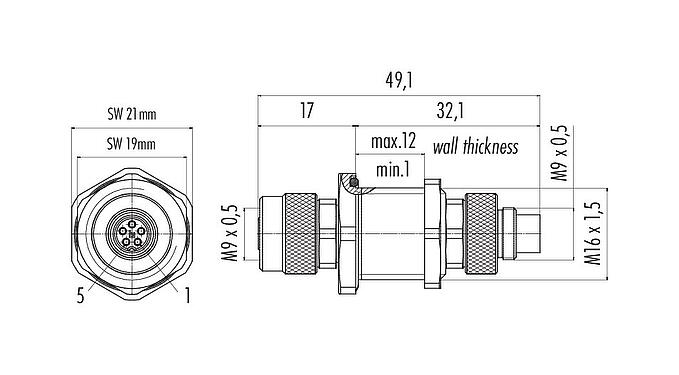

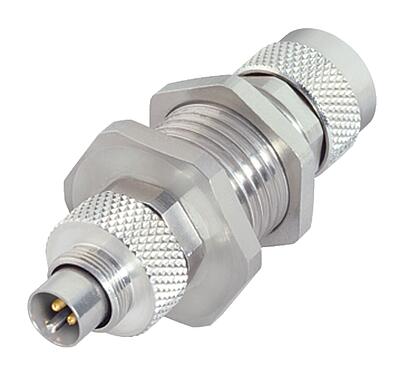

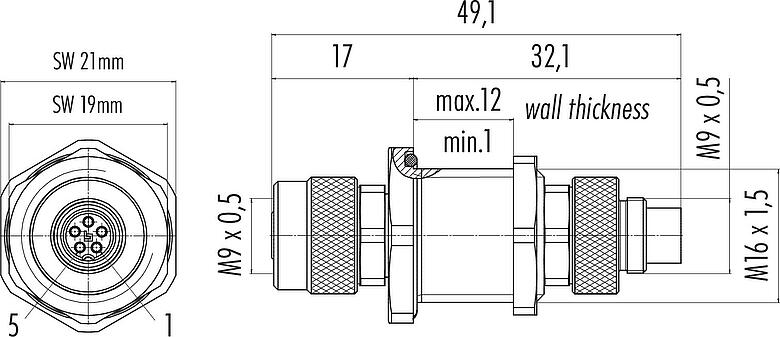

3D View(Click to activate)
The lead-through for control cabinet with screw locking and a pin count of 5 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this shieldable M9 IP67 lead-through for control cabinet designed for both severe cold and severe heat. Due to the qualified rated voltage of 125 V and the rated current of 3,0 A it is perfectly tuned for its field of application.
General features
Moreless| Part no. | 09 9618 100 05 |
| Connector design | Lead-through for control cabinet |
| Version | Lead-through for control cabinets |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP67 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 43.43 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 125 V |
| Rated impulse voltage | 1500 V |
| Rated current | 3,0 A |
| Insulation resistance | ≥ 108 Ω |
| Pollution degree | 1 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Shielding ring |
Material
Moreless| Housing material | CuZn (Brass nickel plated) |
| Contact body material | PBT/PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 6eab736a-a2a9-40b0-86bf-e24aad960fe7 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | EN 60529:1991 | EN 60204-1:2018 |
| RoHS Directive | EN IEC 63000:2018 |
General Disclaim Notice
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
